Synthesis Technologies E350 Morphing Terrarium mini expander 1HP

Description

E350 has 2 jumper under the hood, not accessible via the panel. This expander make them accessible.

The factory mode is Matrix/Morph.

In Matrix mode Morph X and Morph Y button set X/Y wave to XY out, X/Y are like coordinates on a chess board 8x8. Morph Z, linear wave coordinates, positions from 1 to 64, the out is Z out.

Glitch mode delivers the wave regarding the XYZ positions, Morph mode gives you a morphing while you are in between two positions.

In phase mode XY out and Z out delivers the same wave regarding the Z position 1 to 64. The XY out is phase shifted by morph X pot, and attenuated by morph Y (bipolar)

Material

• faceplate, here the FDP for Schaeffer (www.schaeffer-ag.de): morphing-terrarium-exp.zip
• 2 on-on switches : http://www.musikding.de/product_info.php/info/p473_Sliding-switch-1x-ON-ON.html
• 2 connectors : http://www.musikding.de/product_info.php/info/p1389_PCB-connector-3-pins.html
• screws/nuts...

updated links !

• faceplate, here the FDP for Schaeffer (www.schaeffer-ag.de): morphing-terrarium-exp-v2-1-fdp.zip
• 2 on-on switches : http://www.musikding.de/Sliding-switch-1x-ON-ON
• 2 connectors : http://www.musikding.de/PCB-connector-3-pins
• 4 screws : http://www.musikding.de/Screw-M2x5
• 4 nuts : http://www.musikding.de/Hex-nut-M2

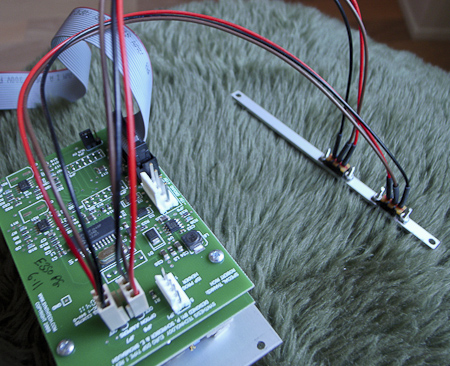

Connexions

jumper 7 matrix/phase selector
jumper 8 morph/glitch Selector

Now you can easily change from Matrix to Phase mode, and glitch to morph, have fun.
