Pseudo double LPG du pauvre • DIY vactrol poor man's LPG

20 mars 2015 - 1 commentaire

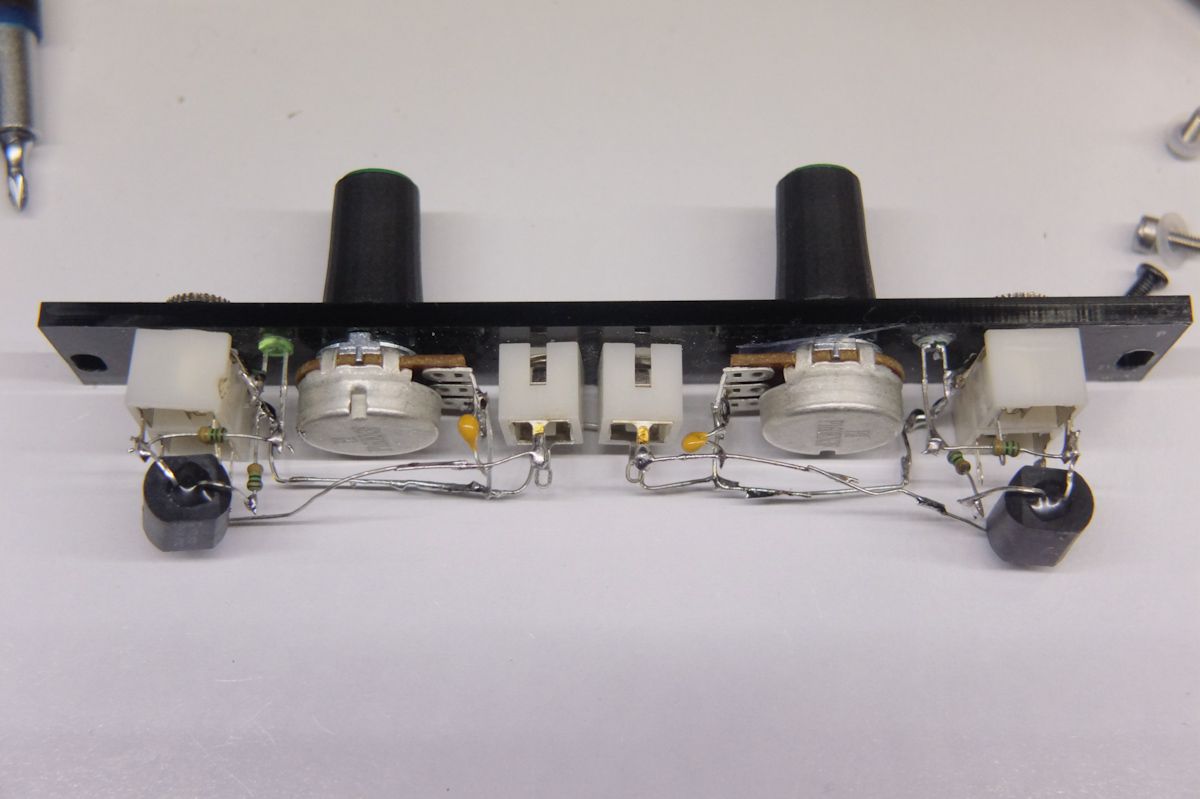

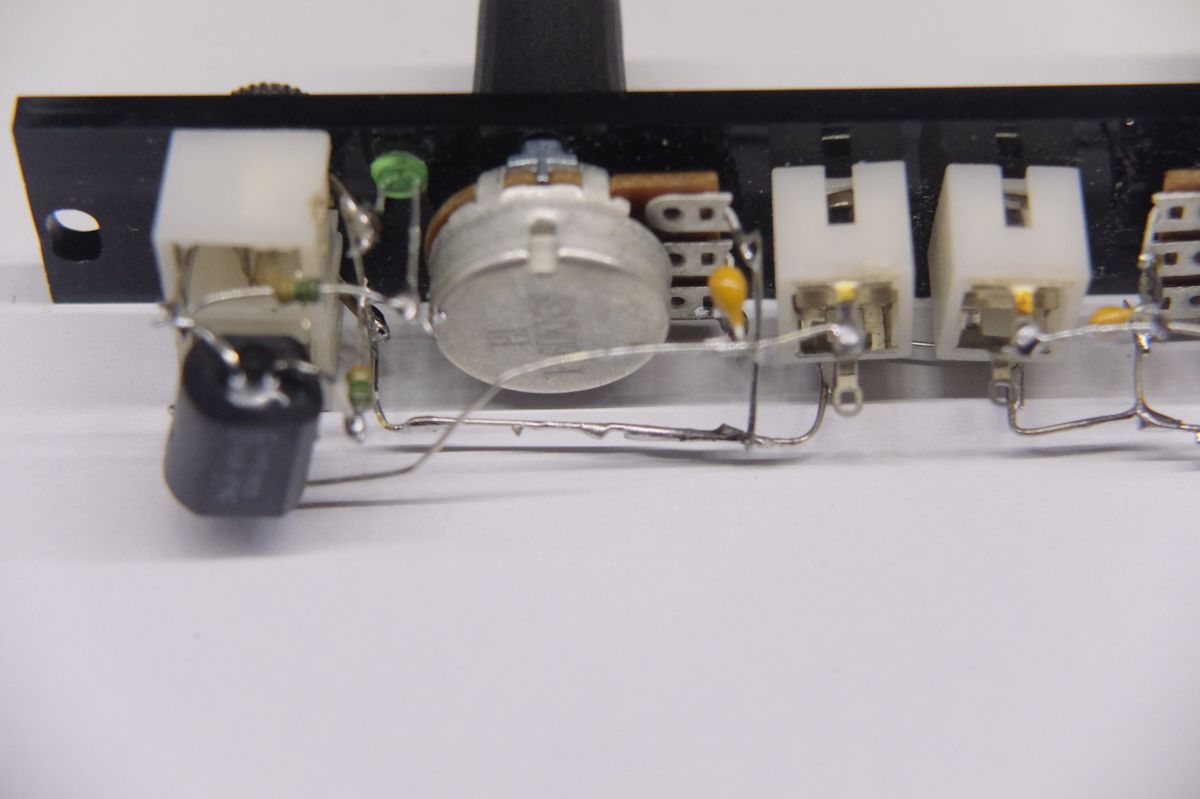

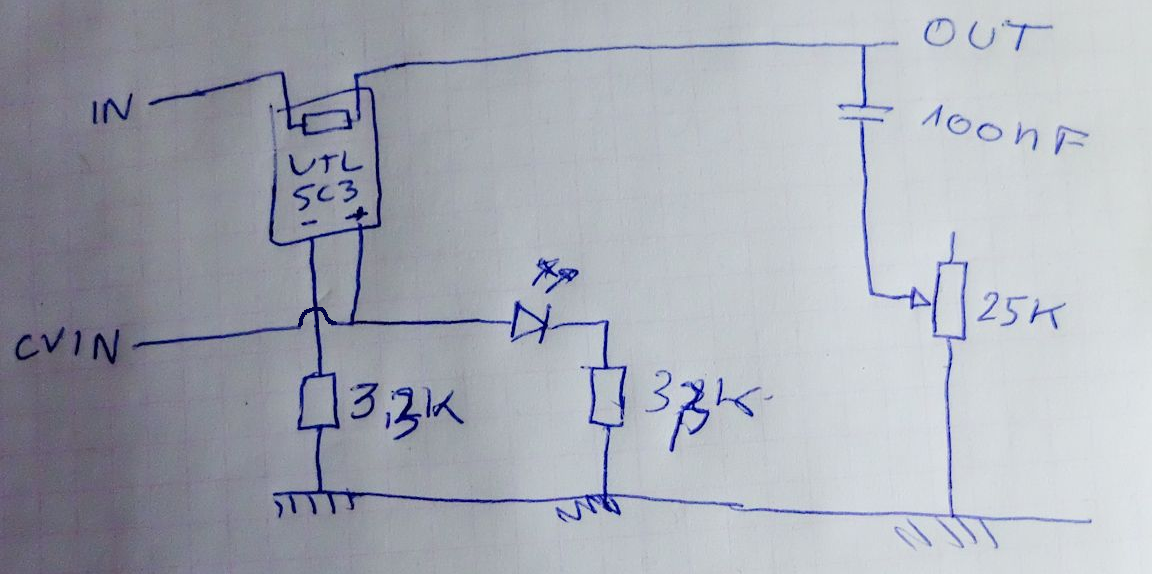

Voilà un genre de VCA filtrant, une sorte de mauvais LPG, facile à fabriquer, pas cher et passif (ne requiert aucune alimentation).

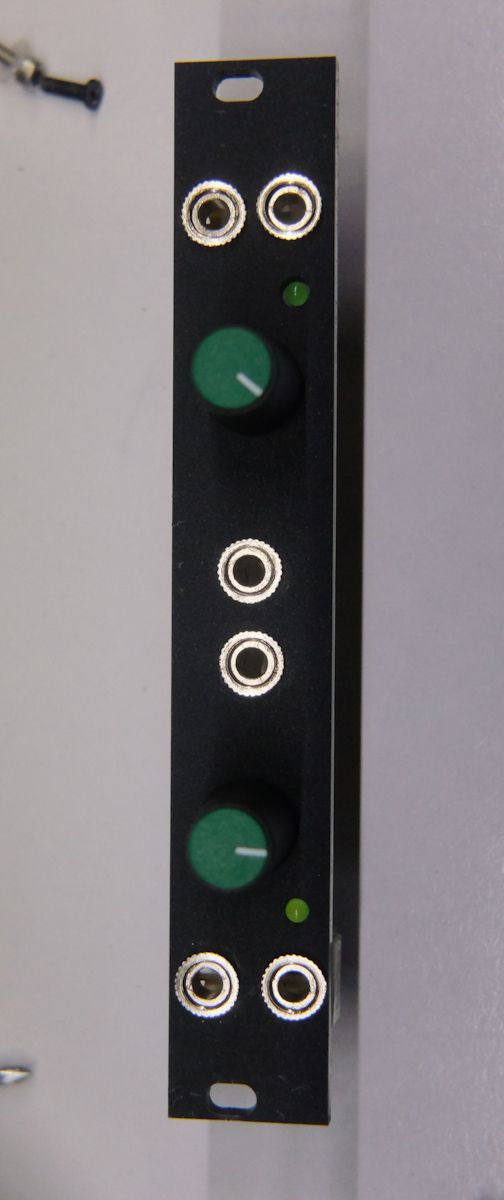

le bouton vert sert de filtre à gauche on filtre les hautes fréquences, à droit le signal est quasi brut

utilisations : VCA, pseudo LPG, VCA pas cher pour moduler des modulations par exemple



webographie

Passive Low Pass Gate - Vactrols https://www.muffwiggler.com/forum/viewtopic.php?p=1486670

photo résistance http://www.tme.eu/fr/details/a906013/photoresistances/excelitas/

Simple "passive" VCA idea? http://electro-music.com/forum/topic-42365.html

vactrol VCA? that easy? https://www.muffwiggler.com/forum/viewtopic.php?p=197612

vactrol VCA https://www.muffwiggler.com/forum/viewtopic.php?p=169724

Time for some Homebrew Vactrols !! https://www.muffwiggler.com/forum/viewtopic.php?p=796018





1 commentaire

#1 samedi 12 novembre 2016 @ 18:04 Fer a dit :

simple and great! thank you

I'd say a second vactrol could be used instead of the pot with the same procedure! That would give a passive simple poorman's-LPG with independent control for amplitude and LP filtering

am I right?
